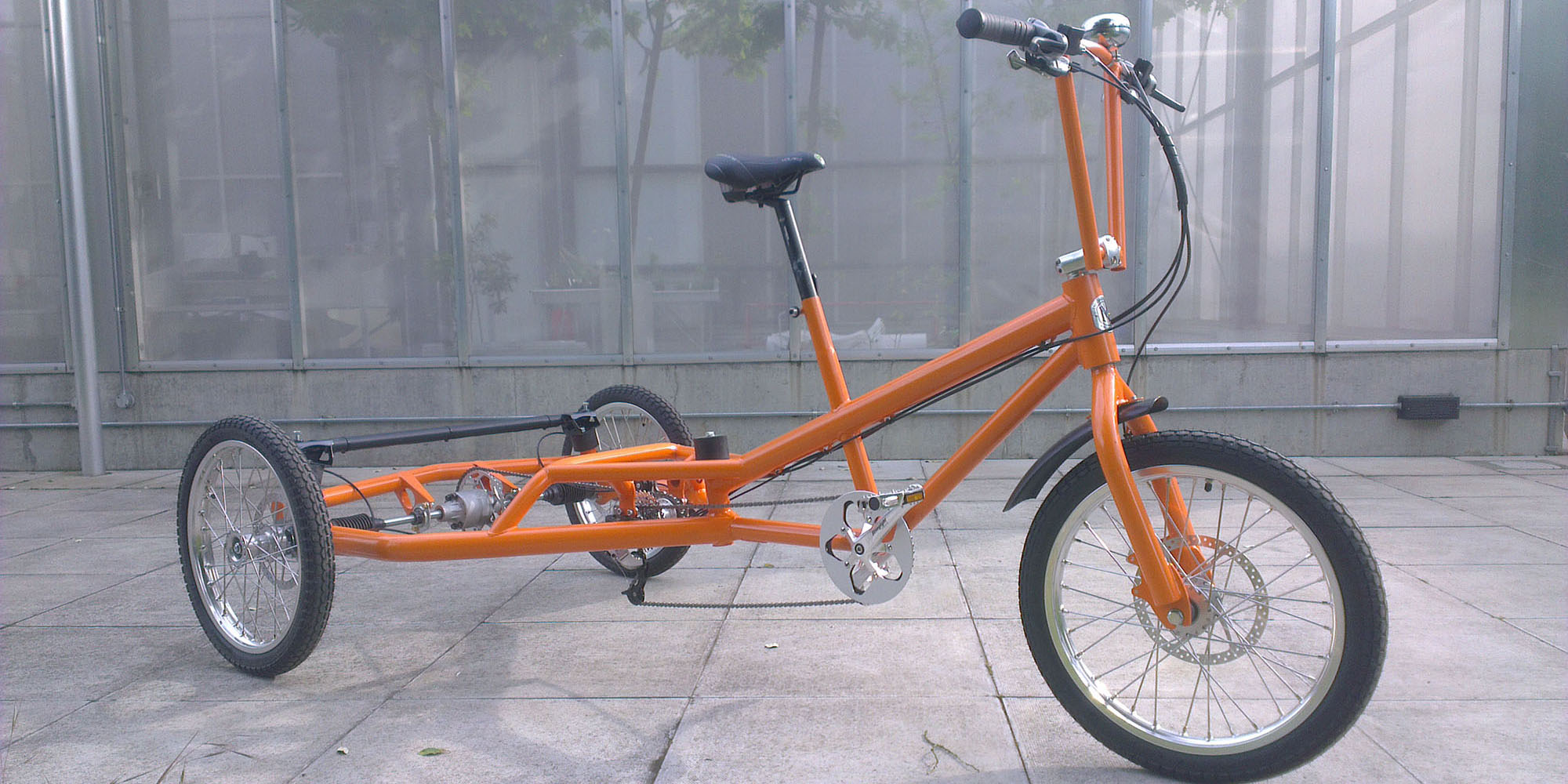

Chassis - widths of 1.0m, 1.1m and 1.2m



710 chassis badge

CM Minimus Chassis - Series 710

The “Minimus” Series 710 range is based on all the standard CM chassis design features with the narrowest format at 1.0m width. The new 710 Trike will beat congestion and be comfortable on narrow cycle paths. This smaller Cargo Trike format is ideal for carrying many goods, 1 or 2 passengers, children, pets and more. When combined with the CM TrailerTrike™ systems the cargo capacity can easily reach 3 cubic metres and is therefore highly applicable to commercial logistics markets. The CM electric drive systems integrate with the Series 710, creating a compact and practical option for domestic use and business operations. This chassis is optimised for last mile delivery in high density traffic, to open up new solutions for the transport needs of small businesses.

Compatible with: -
FlatbedTrike
PickupTrike
FlatbedTrike
Mini-CabTrike
TrailerTrike
RetailTrike

Overall Trike Chassis Dimensions Series 710 - Length 230 cm, Width 99 cm, Height 115 cm
Common Specifications


CM 810 Chassis

CM NEO Chassis - NEO 810

Always striving to fit the market demands Cycles Maximus created the slim NEO 810 chassis. This brings together the advantages of the narrower 700 range and the payload of the 900 range, at 1.1m wide the NEO 810 is an ideal compromise between overall access, capacity and stability. The length is the same as the Original Series 900. The CM electric drive systems integrate with the NEO 810, creating a nimble, slim and capable option for commercial operations within congested areas.

Compatible with: -
FlatbedTrike
PickupTrike
CourierTrike
CoolTrike
RetailTrike

Overall Trike Chassis Dimensions NEO 810 - Length 240 cm, Width 109 cm, Height 115 cm
Common Specifications


CM910 Chassis

CM CMX Chassis - Series 910

Pushing the boundaries of Cargo Cycling, Cycles Maximus offers the “CMX” Series 910 range, The chassis is simply 10cm longer than the Series 900, allowing a higher capacity payload to be carried sensibly. Today’s commercial operations require higher cubic volumes or weight capacity. The Series 910 is comfortable with high volume and 250 kg loads, and the position of the wheels relative to the load is well balanced. All CM electric drive systems integrate with the Series 910, creating a capable and appropriate solution for demanding daily routines in any tough environment.

Compatible with: -
FlatbedTrike
PickupTrike
MaxVanTrike
AeroTrike
BikeTrike
TrailerTrike
RetailTrike

Overall Trike Chassis Dimensions Series 910 - Length 250 cm, Width 119 cm, Height 115 cm
Common Specifications


SPECIAL ORDER ONLY

CM 900 Chassis

CM Original Chassis - Series 900

The “Original” Series 900 Cycles Maximus Trike is the standard format for the new generation CM Modular Trike System, this model was the source product for the new CM drive system and body application technologies. Currently only available as a special order. There are currently more body options for the Series 900 and therefore the full modular concept can be utilised with this trike. At 1.2m wide the MK1 and Series 900 Trikes are equal in size and basic functions, to transport a Series 900 is easy in small vans and on trailers. The style and scale of the machine is friendly in urban and domestic settings, and the width-length character allow a good load to be carried with stability over all terrains.

Compatible with: -
FlatbedTrike
PickupTrike
CourierTrike
MaxVanTrike
AeroTrike
CoolTrike
CabTrike
TrailerTrike
RetailTrike

Overall Trike Chassis Dimensions Series 900 - Length 240 cm, Width 119 cm, Height 115 cm
Common Specifications


Colour options

Colour Chart

Please note that this colour chart is only an approximate guide - computer monitors and graphics cards etc. can show these colours differently

Chassis Series 700, 810, 900 and 910 - Common Specifications

The CM Series 700, 810, 900 and 910 are fully supported with spare parts and consumables

Frame – Hand Built with Lightweight Oversize Steel Tube Space Frame – IP Protected Design, 3 Year Warranty

Forks - Cycles Maximus configuration Steel Tube, Disc Brake and Through-Axle, 3 Year Warranty

Body Fitting – Series 900 and Series 910 Standard 3 Bolt Modular Body Fixing System

Wheels - All Wheels on 17” Rims and 2 ¼” Moped Strength Tyres (19” Rims Possible with Frame Geometry)

Handlebars - Classic Cycles Maximus Oversize BMX Type

Stem - BMX Type 1 1/8” Ahead 4 Bolt Clamp

Saddle – Sprung Comfort

Bottom Bracket – Sealed Shimano

Crank - Standard is Single Ring Forged Aluminium

Pedals - Platform BMX Type, 9/16"

All Hubs CM Made Aluminium

Spokes - 10 SWG Stainless Steel

Bearings - Sealed Industrial Grade

Pit-Stop Wheel Removal

Both Rear Wheels Drive Through Differential

CM Spec Hydraulic Disc Brakes on all 3 Wheels, Anti Rub Self Centering Adjustment

Gearing – 24 Speed Sram DualDrive and Shimano Options. Bottom Bracket Gearing Drive also Available
